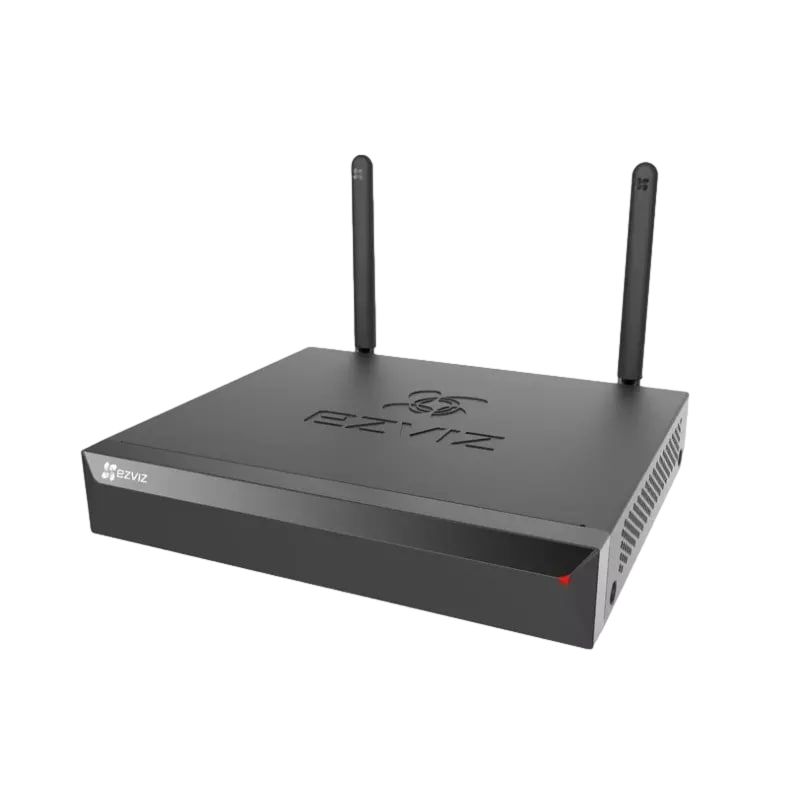

NVR EZVIZ 8 CH

Model Parameters

Model

X5S-4W

X5S-8W

IPC access capability

Wireless IPC access capability

5MP *4

5MP *8

Wired IPC access capability

5MP *4

5MP *8

Network Parameter

Antenna Number

2

2

Maximum wireless Range

100m

100m

Radio frequency

2.4G

2.4G

Ethernet Port

one 10/100M adaptable ethernet interface

one 10/100M adaptable ethernet interface

Required access bandwidth

50mbps

100mbps

Video Output

VGA

1 channel (identical to HDMI output) resolution up to: 1920*1080/60Hz

1 channel (identical to HDMI output) resolution up to: 1920*1080/60Hz

HDMI

1 Channel resolution up to: 2560*1440/30HZ

1 Channel resolution up to: 2560*1440/30HZ

Audio/Video Codec

Recording resolution

5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF

5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF

Video compression

H.265, H.264

H.265, H.264

Decode playback

Support 4*5MP

Support 8*5MP

Video Recording Management

Video recording mode

Manual video recording; Motion detecton recording; Scheduled video recording; Event triggered recording

Manual video recording; Motion detecton recording; Scheduled video recording; Event triggered recording

Video recording mode

Hard disk backup, Internet applicaton backup

Hard disk backup, Internet applicaton backup

Playback mode

Instant playback; Normal playback; Event playback; Tag playback; Log event playback

Instant playback; Normal playback; Event playback; Tag playback; Log event playback

Open protocol

Open protocol support

Yes

Yes

HDD

Interface type

One built-in SATA port

One built-in SATA port

Capability

Supports 1TB to 8TB 3.5inch HDD

Supports 1TB to 8TB 3.5inch HDD

External Interface

Audio output

Not support

Not support

Audio input

Not support

Not support

Hardware reset

Supports

Supports

USB2.0 interface

1

1

Dimensions (mm)

Product dimensions

235mm x 270mm x 44.5 mm

235mm x 270mm x 44.5 mm

Packaging dimensions

387mm x 362mm x 75mm

387mm x 362mm x 75mm
