| Specifications |
| Model |

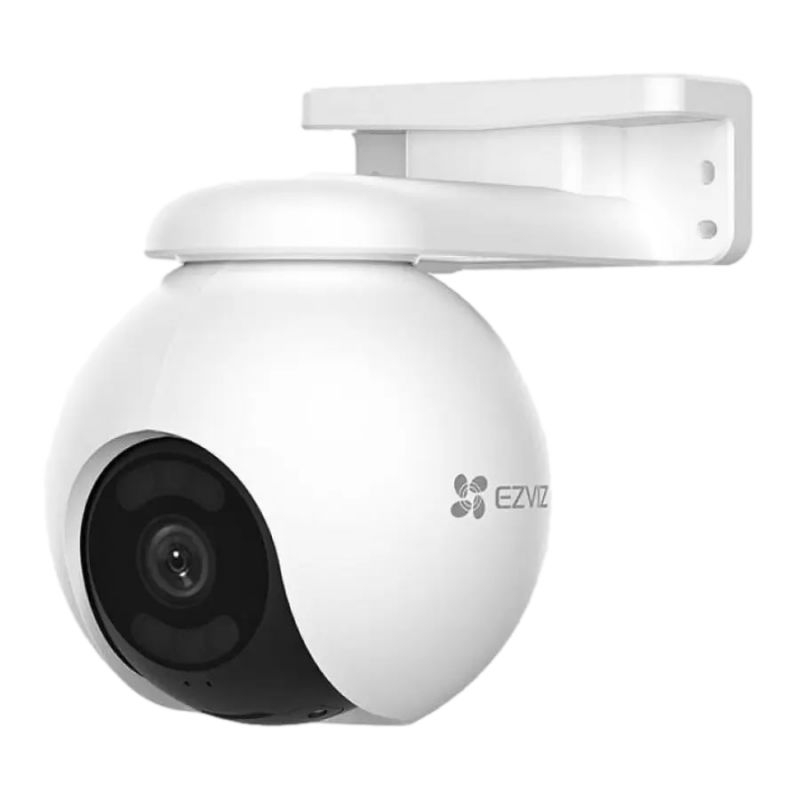

CS-H8x-R100-8H4WKFL |
| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm @ F1.0 Field of view: 48° (vertical), 92° (horizontal), 108° (diagonal) |
| PT Angle |
Pan: 340° , Tilt: 70° |
| Minimum Illumination |
0.01 Lux @ (F1.0, AGC ON) (*data is obtained from EZVIZ laboratories) |
| Lens Mount |
M12 |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| BLC |
Supports |
| Video & Audio |
| Max. Resolution |
2K+ (2560 × 1440) |
| Frame Rate |
Self-adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| H.265 Type |
Main profile |
| Video Bit Rate |
Quad HD; Full HD; HD
Adaptive bit rate
|
| Audio Bit Rate |
Self-Adaptive |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS |
| Transmission Rate |
11b: 11 Mbps, 11g :54 Mbps, 11n :150 Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function |
| Smart Alarm |
AI-powered human shape detection
AI-powered vehicle shape detection
|
| Customized Alert Area |
Supports |
| Two-Way Talk |
Supports |
| Auto Zoom Tracking |
Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card (max. 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage
(subscription required)
|
| General |
| Operating Conditions |
-30ºC ~ 50ºC
Humidity 95% or less ( non-condensing)
|
| IP Grade |
IP65 + 2 h rainstorm |
| Power Supply |
DC 12 V / 1 A |
| Power Consumption |
Max. 12W |
| Dimensions |
167 × 112 × 154 mm (6.57 × 4.41 × 6.06 inch) |
| Packaging Dimensions |
205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch) |
| Weight |
Product: 607 g (21.4 oz)
With package: 1003 g (35.4 oz)
|
