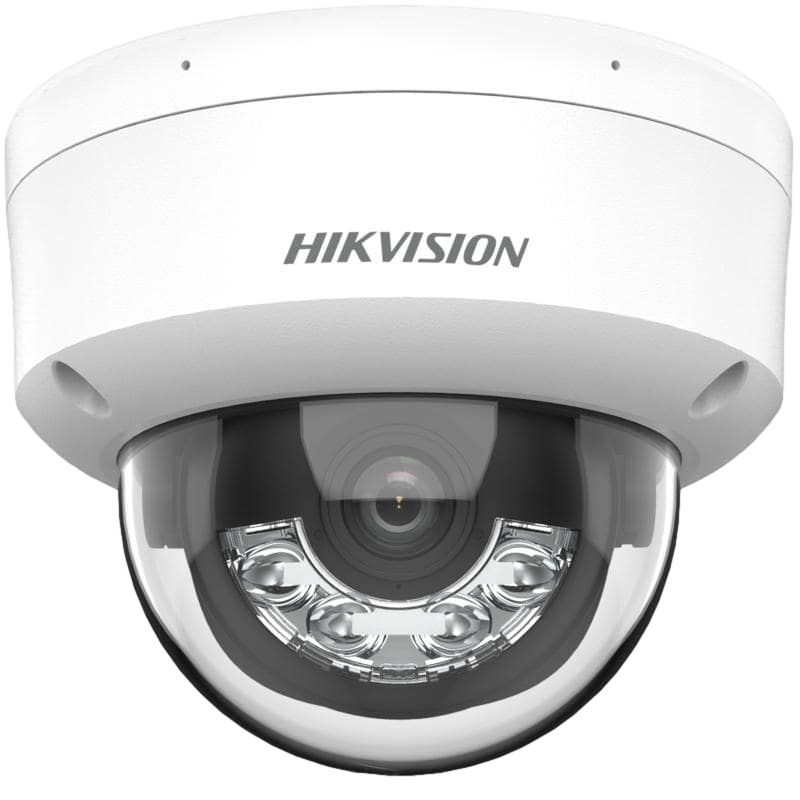

Cam IP 2mp Indoor + MIC ( DS-2CD1123G2-LIUF )

Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Shutter Time

1/3 s to 1/100,000 s

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Supplement Light Type

IR, White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to

160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security

Password protection, complicated password, watermark, basic and digest

authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),

ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS,

FTP, SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,

adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512

GB

Built-in Microphone

Yes

Reset Key

-F: Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and

vehicle)), video tampering alarm, exception

Linkage

Upload to FTP/memory card (-F), send email, notify surveillance center, trigger

recording (-F), trigger capture

General

Power

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W

Material

Metal & Plastic

Dimension

Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 550 g (1.2 lb.)

With Package Weight

Approx. 800 g (1.8 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email
