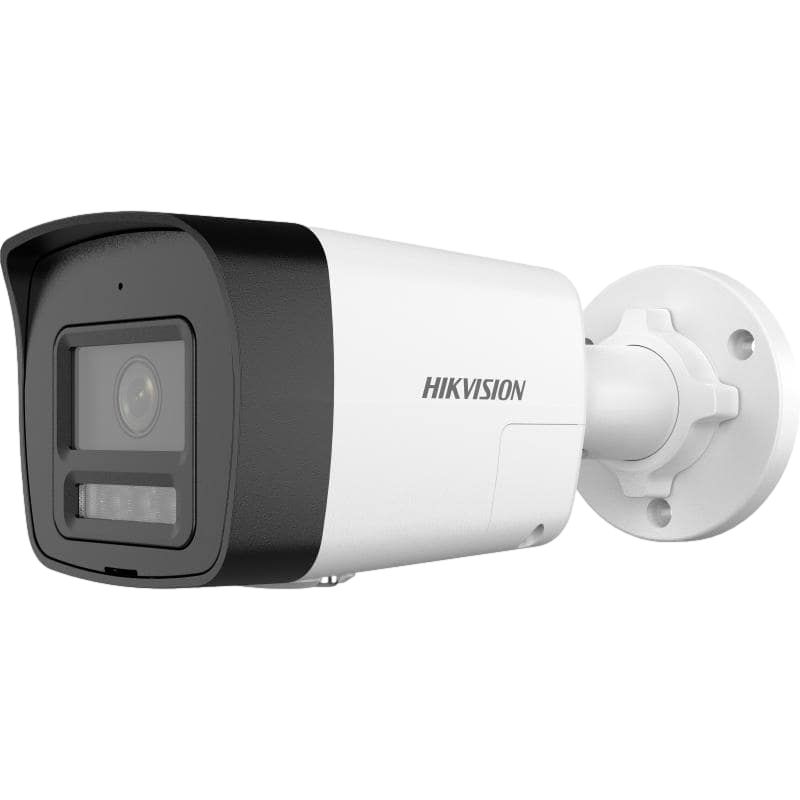

Cam IP 4mp outdoor MIC dan speaker ( DS-2CD104IG2-LIUF/SL ) )

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100, 000 s

Day ＆ Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length ＆ FOV

2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°

4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.2

Depth of Field

2.8 mm: 0.9 m to ∞

4 mm: 1.1 m to ∞

DORI

DORI

2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m

4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

Illuminator

Supplement Light Type

IR, White Light

Supplement Light Range

IR: up to 20 m

White Light: up to 15 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz:

20 fps (2560 × 1440),

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440),

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz:

25 fps (1280 × 720，640 × 480, 640 × 360)

60 Hz:

24 fps (1280 × 720，640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711ulaw/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS,

SNMP, DDNS

API

ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video

Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client

iVMS-4200, Hik-Connect

Web Browser

Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11


Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client

software or web browser

Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Privacy Mask

1 programmable polygon privacy mask

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes, 1 built-in microphone

Built-in Speaker

Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target type (human)),

exception

Linkage

Upload to memory card, notify surveillance center, send email, trigger recording,

trigger capture, audible warning, flashing light

General

Power

12 VDC ± 25%, 0.62 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 9 W

Material

Plastic

Dimension

179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")

Package Dimension

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
