| Model |

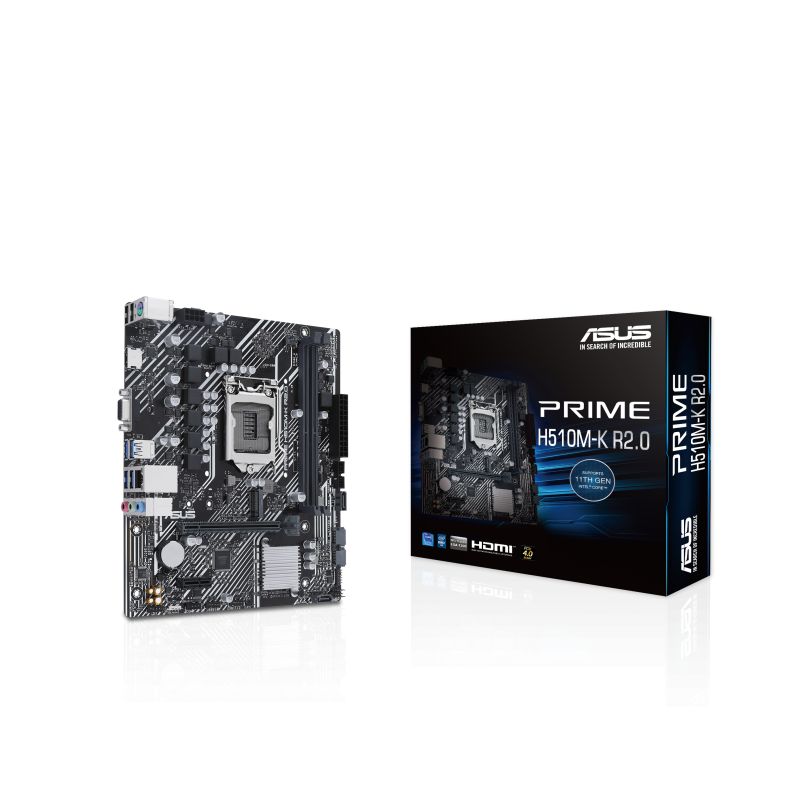

PRIME H510M-K R2.0 |
| CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Chipset |
Intel® H470 Chipset |
| Memory |
2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC |
| Graphics |
1 x VGA port |
| |
1 x HDMI™ port** |
| Expansion Slots |
Intel® 11th & 10th Gen Processors* |
| |
1 x PCIe 4.0/3.0 x16 slot |
| |
- Intel® 11th Gen processors support PCIe 4.0 x16 |
| |
- Intel® 10th Gen processors support PCIe 3.0 x16 |
| |
Intel® H470 Chipset |
| |
1 x PCIe 3.0 x1 slot |
| Storage |
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| |
Intel® H470 Chipset |
| |
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| |
4 x SATA 6Gb/s ports |
| Ethernet |
1 x Realtek 1Gb Ethernet |
| USB |
Rear USB (Total 6 ports) |
| |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| |
2 x USB 2.0 ports (2 x Type-A) |
| |
Front USB (Total 6 ports) |
| |
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| |
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| |
- Supports up to 24-Bit/192 kHz playback |
| Back Panel I/O Ports |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| |
2 x USB 2.0 ports (2 x Type-A) |
| |
1 x VGA port |
| |
1 x HDMI™ port |
| |
1 x Realtek 1Gb Ethernet port |
| |
3 x Audio jacks |
| |
1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
Fan and Cooling related |
| |
1 x 4-pin CPU Fan header |
| |
1 x 4-pin Chassis Fan header |
| |
Power related |
| |
1 x 24-pin Main Power connector |
| |
1 x 8-pin +12V Power connector |
| |
Storage related |
| |
1 x M.2 slot (Key M) |
| |
4 x SATA 6Gb/s ports |
| |
USB |
| |
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| |
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| |
Miscellaneous |
| |
1 x RGB header |
| |
1 x Clear CMOS header |
| |
1 x COM Port header |
| |
1 x Front Panel Audio header (AAFP) |
| |
1 x S/PDIF Out header |
| |
1 x Speaker header |
| |
1 x SPI TPM header (14-1pin) |
| |
1 x 10-1 pin System Panel header |
