| Model |

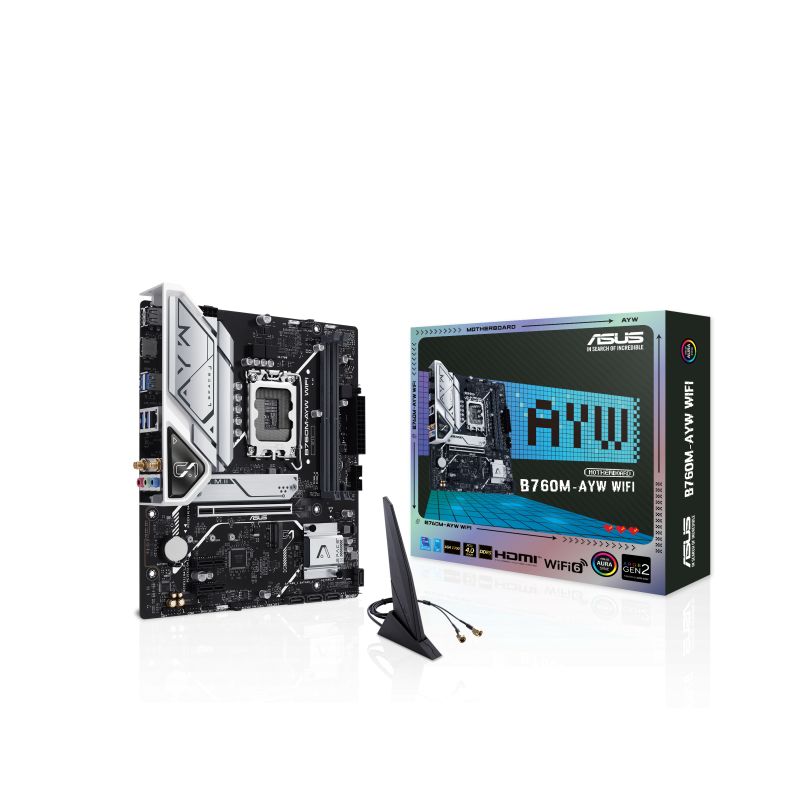

B760M-AYW WIFI |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| Chipset |
Intel® B760 Chipset |
| Memory |
2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* |
| |
Dual Channel Memory Architecture |
| Graphics |
1 x HDMI™ port** |
| Expansion Slots |
ntel® Core™ Processors (14th & 13th & 12th Gen) |
| |
1 x PCIe 4.0 x16 slot |
| |
Intel® B760 Chipset |
| |
2 x PCIe 4.0 x1 slots |
| Storage |
otal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| |
Intel® Core™ Processors (14th & 13th & 12th Gen) |
| |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| |
Intel® B760 Chipset |
| |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Ethernet |
1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth |
Wi-Fi 6 |
| |
Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| |
Supports 2.4/5GHz frequency band |
| Audio |
Realtek 7.1 |
| Back Panel I/O Ports |
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
| |
2 x USB 2.0 ports (2 x Type-A) |
| |
1 x HDMITM port |
| |
1 x Wi-Fi Module |
| |
1 x Realtek 2.5Gb Ethernet port |
| |
3 x Audio jacks |
| Internal I/O Connectors |
Fan and Cooling related |
| |
1 x 4-pin CPU Fan header |
| |
2 x 4-pin Chassis Fan headers |
| |
Power related |
| |
1 x 24-pin Main Power connector |
| |
1 x 8-pin +12V Power connector |
| |
Storage related |
| |
2 x M.2 slots (Key M) |
| |
4 x SATA 6Gb/s ports |
| |
USB |
| |
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports |
| |
1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| |
Miscellaneous |
| |
3 x Addressable Gen 2 headers |
| |
1 x Clear CMOS header |
| |
1 x COM Port header |
| |
1 x Front Panel Audio header (AAFP) |
| |
1 x S/PDIF Out header |
| |
1 x Speaker header |
| |
1 x SPI TPM header (14-1pin) |
| |
1 x 10-1 pin System Panel header |
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor |
| |
9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
