Model

Parameters

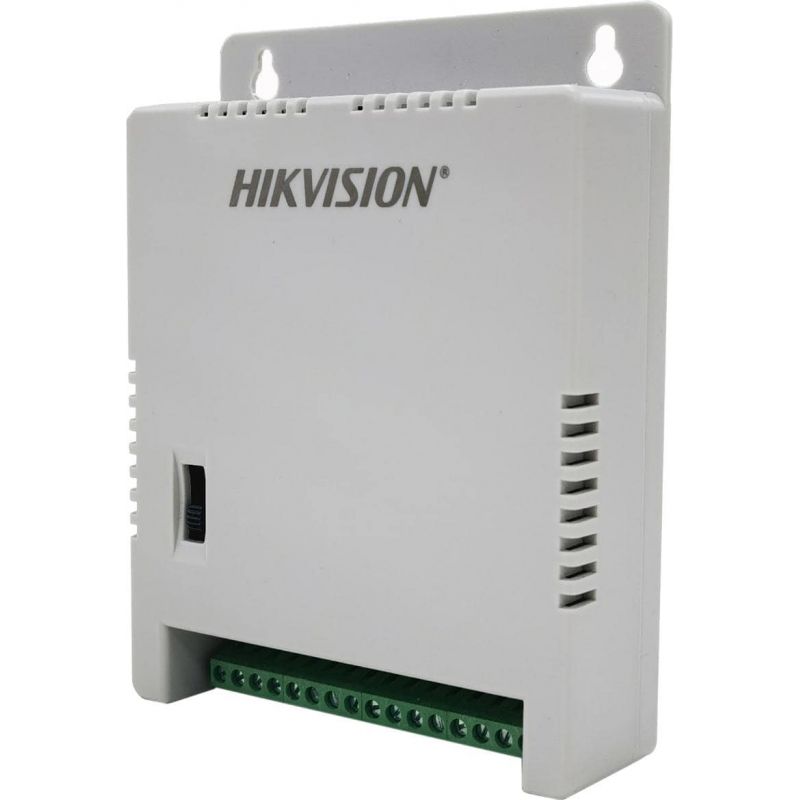

DS-2FA1205-C8

Switching Mode Power Supply

Appearance

White

Input

150 to 285 VAC, 47 Hz to 63 Hz

Output

12 VDC/1 A per channel

Cable Length Compensation

Normal: 12 VDC

Long: 13.5 VDC

Ex-Long: 15 VDC

Ripple & Noise

0.15 Vp-p (150 mV)

AC Input Connector

C8

DC Output Connector

DC Plug: grid terminal

LED Indicator

Green

Operating Conditions

0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)

Storage Conditions

-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)

Dimension

144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")
